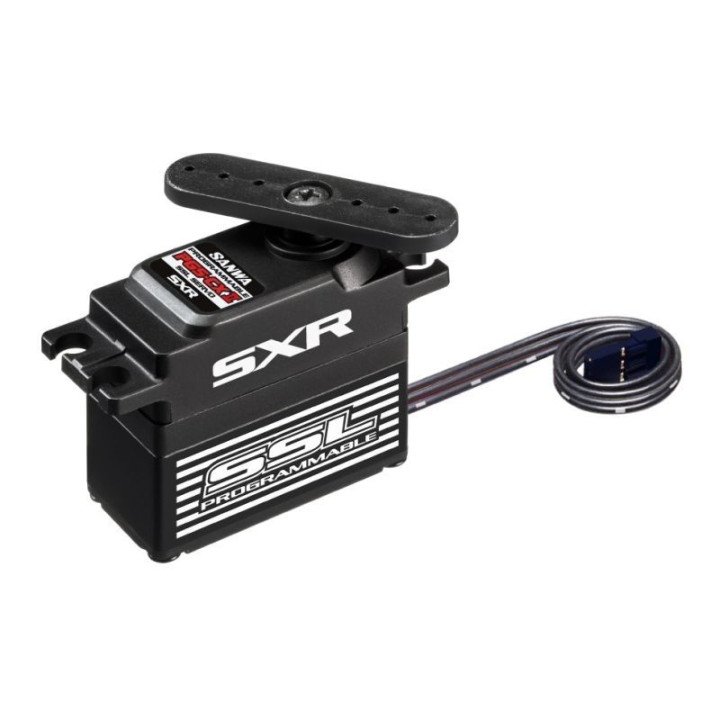

PGS-CX2 SXR High Power Brushless Torque Servo (High Voltage)

Features:

• Programmable Servo to be compatible with SSL & Telemetry
• Setting Adjustment by wireless from Radio
• Setting Adjustment to connect Servo with Multi Setting Gear
• Regarding Temperature, Current, Voltage and Volume Position on Servo inside, telemetry-transmission can be passed to Radio
• Multi Setting Gear compatible
• SSR mode compatible
• SHR mode compatible
• Lipo 2 cell battery compatible
• High torque type
• Coreless motor
• Metal Gears
• AL Heat Sink
• # Initial Setting on Multi Setting Gear is necessary.

• Speed0.11 sec./60°(7.4V); 0.13sec./60°(6.0V)
• Torque 26.5 kg/cm (7.4V); 23.3kg/cm (6.0V)
• Dimensions: 40.5x20.5x37.2mm
• Weight: 59g
• Setting items:
• SSL-CH (SSL Channel Setting)
• STRETC (Stretcher Adjustment)
• BOOST (BOOST Adjustment)
• D-Band (Dead Band Adjustment)
• MV-MID (Middle Torque Adjustment)
• MV-END (Later Torque Adjustment)
• BREAK (Break Adjustment)
• ◎MV-HOLD (Power Adjustment at whole area)
• ◎MV-FRQ (Feeling Adjustment at whole area)
• ◎MAX-PW (MAX Duty Adjustment)
